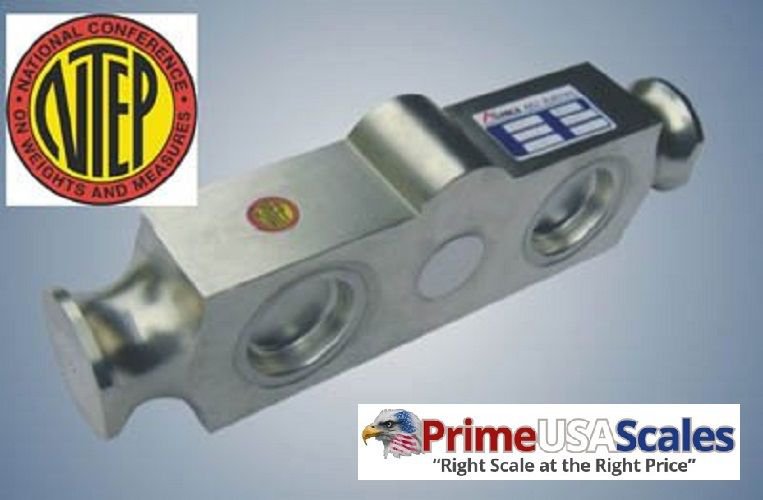

Double Ended Shear Beam Load Cell Truck Floor Hopper Tank Scale 60k LB Capacity

800-917-7205 Specifications: Rated Output = 3.0 +/- 0.003m V/V Accuracy Class = III L, M Non-Linearity = +/-0.02%FS Hysteresis = +/-0.02%FS Non-Repeatability = +/-0.02%FS Creep in 30 minutes = +/-0.02%FS Temperature Effect on Span = 15PPM C of applied load Temperature Effect on Zero = 20PPM C of applied load Temp Range, compensated = minus 10 to +40 degrees C Temp Range, operating = minus 30 to +70 degrees C Zero Balance = +/- 1% FS Input Resistance = 750+/-10ohms Output Resistance = 703+/-2ohms Insulation Resistance = >/-5000ohms (50V DC) Max safe overload = 120%FS Ultimate overload = 200%FS Excitation recommended = 10-12V DC Excitation maximum = 15V AC/DC Cable color code: Red = Pos. input, Green = Pos. output, Black = Neg input, White = Neg. output. More technical features are available on PDF spec sheets, please contact us and we will email them to you. NOTE: Technical support not available for applications or installation of indicators and load cells. We strive for 100% Feedback! [email protected] WHY BUY FROM US? We offer a quality built product at a reasonable price. We specialize in scales and nothing else. We offer sales, service, and calibration in the largest cities throughout the United States. We stand behind our products and have a knowledgeable staff ready to answer any questions. We manufacture American made products, build custom scales, and offer only the best quality.
